SK250 - 2003-2006 Jeep TJ/LJ Wrangler 4.0 Liter Cylinder Assist™ System with Factory Axle 6.0" Stroke
PSC Cylinder Assist Steering Kits are engineered to efficiently handle increased torque loads due to the installation of larger-than-stock tire sizes, upgraded aftermarket axles, and/or locking differentials.
PSC Cylinder Assist Steering Kits deliver improved handling characteristics without oversteer and a familiar level of road feel without increased driver effort, making it perfect for daily driven, on-the-road use.

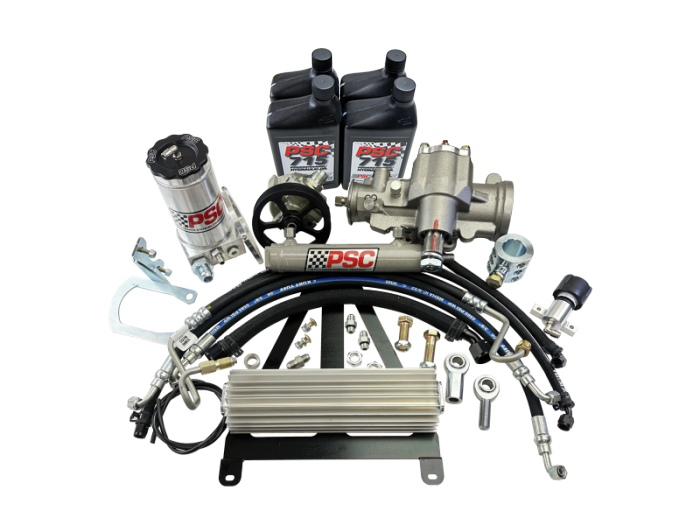

Kit Includes
BOX 1
(SG400R) BIG BORE XDR Cylinder Assist™ Steering Gear Box
BOX 2
(PK40JP2) TJ/LJ 4.0 Liter XD Pump Kit
BOX 3
(CAK400R-6) TJ/LJ 4.0 Liter Cylinder Assist™ w/ 6.0" Stroke Axle Kit
Does your rig have a D60 axle? Order the SK251.
Don't see what you need or need help making a decision on which product is right for your project?
Contact Us
Applications:
2003-06 Jeep LJ/TJ 4.0L (38-42 Inch Tire Size)
Features:
- SG400R Steering Gearbox Conversion replaces failure-prone OEM ZF component
- Increased Torque Output
- Relieves stress on steering gearbox and frame mounts
- Steering Assist Cylinder acts as a dynamic steering stabilizer
- Requires HK2000 Hose Kit
- Compatible with OEM serpentine belt
NOTES:
Due to the increased overall size of the SG400R, some applications may require a 1" body lift to clear interference issues of the high pressure and return lines.
Some applications may require the modification of the factory steering shaft, shortening it by approximately two (2) inches. How to Shorten Your Intermediate Shaft
PSC recommends SWEPCO 715 Power Steering Fluid in all PSC Steering Systems
Positive caster increases align torque, aka the force that straightens the steering wheel when you go forward, which improves straight-line stability of the car. Due to the geometry of positive caster, this will also increase negative camber gain when turning, which will enable a wider tire contact patch. The caster angle is a major contributor to directional control. An insufficient amount of positive caster angle will decrease driver effort at the steering wheel, but may make the vehicle too sensitive and twitchy, especially as speed increases. To achieve the best on-the-road driving experience with larger tire sizes, the recommended front axle caster setting is 6-7 degrees positive.
PSC RECOMMENDS THE USE OF A POWER STEERING FLUID COOLER TO PREVENT PUMP DAMAGE OR CATASTROPHIC FAILURE.
